Panel Mount DC to DC Converter Manufacturers & Exporters

A Panel Mount DC to DC Converter is a compact and reliable power conversion solution designed to convert one DC voltage level into another regulated DC voltage level. Its panel-mount construction makes it suitable for integration inside electrical panels, control cabinets, automation systems, telecom equipment, and industrial power systems.

Powertron DCPS provides reliable Panel Mount DC to DC Converter solutions for applications requiring stable DC output, efficient voltage conversion, protection, and continuous-duty operation.

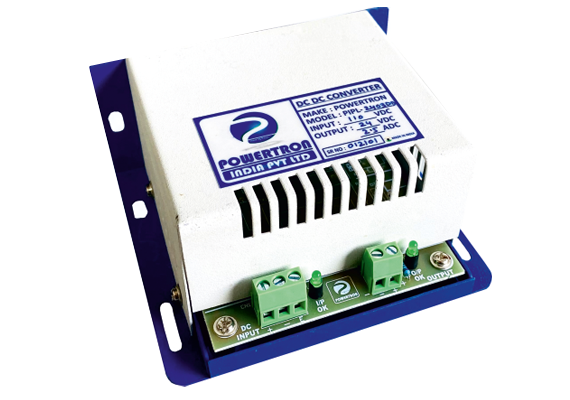

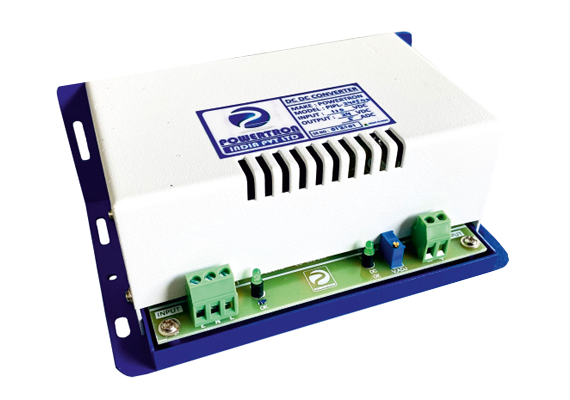

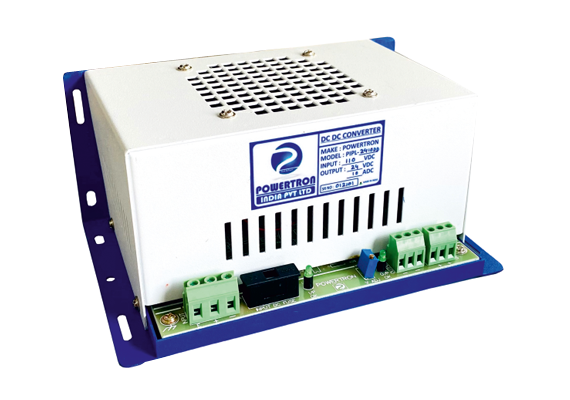

Panel Mount DC to DC Converter

Panel Mount DC to DC Converter

Request A Quote

Key Features :

Compact panel-mount design
Regulated DC output
Step-up and step-down options
High conversion efficiency
Low output ripple
Stable voltage regulation
Constant Voltage (CV) and Constant Current (CC) options
Over-voltage protection
Over-current protection
Short-circuit protection
Over-temperature protection
Digital monitoring options
Robust industrial construction
Continuous-duty operation
Customized configurations available

Medical

Locomotive

Telecommunication

Aerospace & Defence

Marines

Automatiion

Note : Input Voltage Must be Greater Than Output Voltage or Customized

DC VOLTAGE	RATED CURRENT	POWER	DC VOLTAGE	RATED CURRENT	POWER
12VDC	2.5A	30W	12VDC	10A	60W
24VDC	1.25A		24VDC	5A
24VDC	1.25A		48VDC	2.5A
48VDC	0.625A		110VDC	1.09A
12VDC	10A	120W	12VDC	20A	240W
24VDC	5A		24VDC	10A
48VDC	2.5A		48VDC	5A
110VDC	1.09A		110VDC	2.18A
110VDC	1.09A		220VDC	1.09A
12VDC	50A	600W	30VDC	50A	1500W
24VDC	25A		60VDC	25A
48VDC	12.5A		100VDC	15A
110VDC	5.4A		150VDC	10A
220VDC	2.72A		300VDC	5A

Parameter	Specification
Product	Panel Mount DC to DC Converter
Input	DC
Output	Regulated DC
Input Voltage	Application dependent
Output Voltage	Application dependent
Output Current	Application dependent
Power Rating	Application dependent
Converter Type	Step-Up / Step-Down
Efficiency	High-efficiency design
Output Ripple	Low ripple design
Control	CV / CC as required
Protection	OVP / OCP / Short Circuit / Thermal
Cooling	Natural / Forced Air
Mounting	Panel Mount
Monitoring	Digital / Remote options
Operation	Continuous Duty
Customization	Available

Benefits

Easy integration into electrical panels
Space-saving design
Stable and regulated DC output
Efficient DC voltage conversion
Reduced power losses
Low output ripple
Multiple protection functions
Reliable continuous operation
Low maintenance requirements
Application-specific customization

Applications

Panel Mount DC to DC Converters are widely used in:

Industrial Automation
Control Panels
Electrical Cabinets
PLC Systems
Telecom Systems
Railway Systems
Power Plants
Electrical Substations
Battery Systems
Battery Energy Storage Systems
Solar & Renewable Energy
Instrumentation
Communication Equipment
Remote Power Systems
Testing Equipment

Panel Mount DC to DC Converter for Industrial Applications

An industrial Panel Mount DC to DC Converter provides regulated DC power to PLCs, sensors, relays, instrumentation, communication equipment, and control systems. Its compact mounting arrangement allows convenient installation within electrical panels and control cabinets.

Step-Up and Step-Down DC Conversion

Step-Up DC to DC Converter

A step-up DC to DC converter increases a lower DC input voltage to the required higher DC output voltage

Step-Down DC to DC Converter

A step-down DC to DC converter reduces a higher DC input voltage to a lower regulated DC output voltage.

Depending on the application, Powertron DCPS can provide suitable configurations for different input and output voltage requirements.

How Does a Panel Mount DC to DC Converter Work?

The converter receives DC power from a battery, DC power supply, solar system, or another DC source. Internal power switching, control, and regulation circuits convert the input into the required DC output voltage.

The feedback system continuously monitors the output and regulates the converter to maintain stable DC power within the specified operating range.

How to Select the Right Panel Mount DC to DC Converter?

Input DC voltage range
Required output voltage
Maximum output current
Power rating
Step-up or step-down requirement
Efficiency requirements
Output ripple requirements
Protection features
Cooling requirements
Available panel space

Why Choose Powertron DCPS?

Powertron DCPS provides Panel Mount DC to DC Converter solutions designed for reliable and efficient DC power conversion. Configurations can be customized according to required input voltage, output voltage, current, power rating, efficiency, protection, monitoring, cooling, and mounting requirements.

FAQ

What is a Panel Mount DC to DC Converter? +

A Panel Mount DC to DC Converter converts one DC voltage level into another regulated DC voltage and is designed for installation inside electrical panels and control cabinets.

What is the advantage of panel mounting? +

Panel mounting provides space-efficient installation and easy integration into industrial control panels and electrical cabinets.

Can a panel mount converter increase and decrease voltage? +

Yes. Depending on the design, step-up and step-down DC to DC converter configurations are available for different voltage conversion requirements.

Where are panel mount DC to DC converters used? +

They are commonly used inindustrial automation, control panels, PLC systems, telecom, railway, battery systems, substations, renewable energy, and instrumentation.

Can Powertron DCPS provide customized panel mount DC to DC converters? +

Yes. Input/output voltage, current, power rating, conversion type, protection, cooling, monitoring, and mounting specifications can be customized according to application requirements.
