DC (Direct Current) power supplies come in various types, each designed for specific applications and requirements. Here are some common types of DC power supplies:

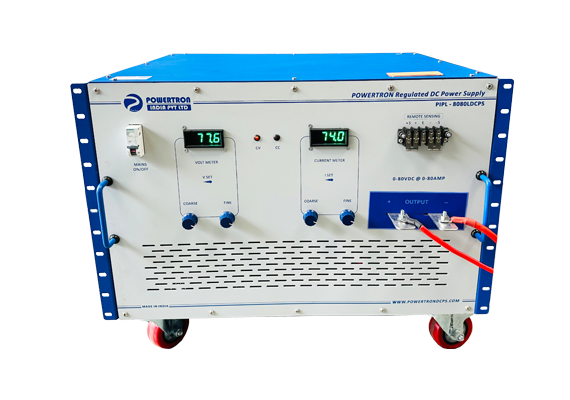

Linear DC Power Supply
Linear power supplies use a linear regulator to control the output voltage. They are known for their simplicity, low noise, and ease of use.
Applications: Benchtop testing, laboratories, education, and applications where low noise and precision are crucial.
Switched-Mode Power Supply (SMPS):
SMPS, or switching power supplies, are more complex and efficient than linear power supplies. They use a switching regulator to convert input power into a high-frequency AC signal, which is then rectified and filtered to produce the desired DC output.
Applications: Electronics manufacturing, telecommunications, computers, and applications requiring high efficiency and compact design.
Unregulated DC Power Supply:
Description: Unregulated power supplies provide a constant DC output voltage without any regulation. They are simpler in design compared to regulated power supplies.
Applications: Basic electronics projects, where precise voltage regulation is not critical.
Regulated DC Power Supply:
Description: Regulated power supplies incorporate a feedback mechanism to maintain a constant output voltage, even when there are variations in the input voltage or load.
Applications: Electronic testing, laboratories, and applications requiring stable and precise voltage output.
Programmable DC Power Supply:
Description: Programmable power supplies allow users to set and control the output voltage and current digitally. They often come with advanced features such as overvoltage protection, current limiting, and remote programming.
Applications: Automated testing, research and development, and applications requiring precise programmable settings.

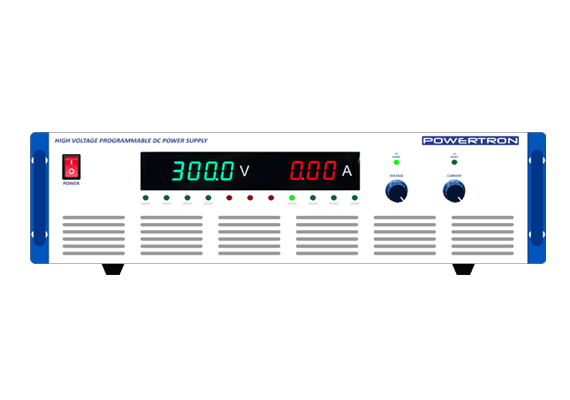

High Voltage DC Power Supply:
Description: High voltage power supplies are designed to provide elevated output voltages, often beyond the typical range of standard power supplies.
Applications: Electron microscopy, particle accelerators, and experiments requiring high voltage.
Bench top Power Supply:
Benchtop power supplies are compact, portable units designed for use on a workbench. They can be either linear or switch-mode and often include multiple output channels.
Applications: Education, prototyping, and general-purpose testing on a workbench.
Dual Output DC Power Supply:
Dual output power supplies provide two independent DC output channels, each with its own adjustable voltage and current settings.
Applications: Applications requiring two different voltage levels simultaneously, such as powering multiple components on a circuit.
Choosing the right type of DC power supply depends on the specific needs of the application, including voltage and current requirements, precision, efficiency, and additional features.
