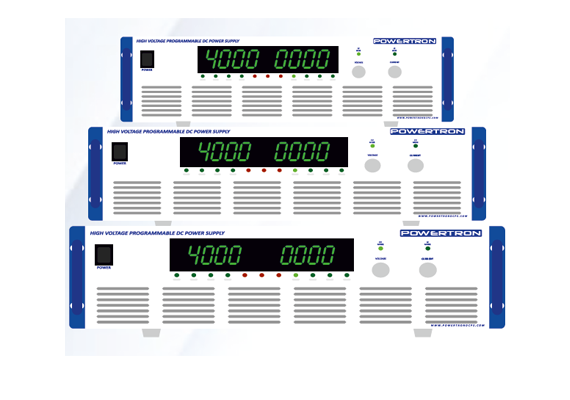

Programmable HV DC Power Supply

FEATURES :

  • Max.Rated Output 500W To 8Kw, Customized Up To 50KW
  • Max.Rated Voltage From +1000V To +50Kv
  • Option For Negative Output From -1000V To -50Kv
  • Low Ripple, High Stability
  • No Overshoot During Startup
  • Soft Start By Hardware & Adjustable Voltage Rise Time By Software
  • List Mode Function, Auto Run Function
  • Preset Function, Setting Of Voltage And Current With Output Open Circuit
  • Multiple Protections: Ovp, Otp, Acf And Current Limit Protections
  • Standard Interface: Rs232 & Rs485, Support Modbus-Rtu Commands
  • Optional Interface: Dc 0~5V, 0~10V Or 4-20Ma Interface For Control And Feedback; Lan Interface.
Power Utilities

Power Utilities

Aerospace & Defence Electronics

Aerospace & Defence Electronics

Semiconductor Manufacturing

Semiconductor Manufacturing

R & D Laboratories

R & D Laboratories

Automotive & EV Industry

Automotive & EV Industry

Industrial Automation

Industrial Automation

Renewabl Eenergy

Renewabl Eenergy

AVAILABLE VARIANTS

Model
(600W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-1KP600-HPDP 0~1000V 0~600mA 0~1050V ≤0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-1KN600-HPDP 200~1000V 0~600mA 200~1050V ≤0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-1.2KP500-HPDP 0~1200V 0~500mA 0~1260V ≤0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-1.2KN500-HPDP 240~1200V 0~500mA -240~1260V ≤0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-1.5KP400-HPDP 0~1500V 0~400mA 0~1575V s0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-1.5KN400-HPDP 300~1500V 0~400mA 300~1575V ≤0.05%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-2KP300-HPDP 0~2000V 0~300mA 0~2100V s0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-2KN300-HPDP 400~2000V 0~300mA 400~2100V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-3KP200-HPDP 200~3000V 0~200mA 200~3150V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-3KN200-HPDP 600~3000V 0~200mA 600~3150V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-4KP150-HPDP 200~40 00V 0~150mA 200~4200V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-4KN150-HPDP 800~4000V 0~150mA 800~4200V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-5KP120-HPDP 300~5000V 0~120mA 300~5250V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-5KN120-HPDP 1000~5000V 0~120mA 1000~5250V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KP100-HPDP 400~60 00V 0~100mA 400~6120V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KN100-HPDP 1200~6000V 0~100mA -1200~ 6120V ≤0.1%FS 1V 0.1mA 1V 1V 0.1mA
PIPL-8KP75-HPDP 500~80 00V 0~75mA 500~8400V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
PIPL-8KN75-HPDP 1600~8000V 0~75mA 1600~8400V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
PIPL-10KP60-HPDP 800~10000V 0~60mA 800~1050 0V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
PIPL-10KN60-HPDP 2000~10000V 0~60mA 2000~10500V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
PIPL-12KP50-HPDP 1000~12000V 0~50mA 1000~12600V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
PIPL-12KN50-HPDP 2400~12000V 0~50mA 2400~12600V ≤0.1%FS 1V 0.01mA 1V 1V 0.01mA
Model
(1200W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-1KP1200-HPDP 0 ~ 1000V 0 ~ 1200mA 0 ~ 1050V 0 ~ 1200mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1KN1200-HPDP -200 ~ -1000V 0 ~ 1200mA -200 ~ -1050V 0 ~ 1200mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1.2KP1000-HPDP 0 ~ 1200V 0 ~ 1000mA 0 ~ 1260V 0 ~ 1000mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1.2KN1000-HPDP -240 ~ -1200V 0 ~ 1200mA -240 ~ -1260V 0 ~ 1200mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1.4KP800-HPDP 0 ~ 1500V 0 ~ 800mA 0 ~ 1575V 0 ~ 800mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-1.5KN800-HPDP -300 ~ -1500V 0 ~ 800mA -300 ~ -1575V 0 ~ 800mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-2KP600-HPDP 0 ~ 2000V 0 ~ 600mA 0 ~ 2100V 0 ~ 600mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-2KN600-HPDP -400 ~ -2000V 0 ~ 600mA -400 ~ -2100V 0 ~ 600mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-3KP400-HPDP 200 ~ 3000V 0 ~ 400mA 200 ~ 3150V 0 ~ 400mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-3KN400-HPDP -600 ~ -3000V 0 ~ 400mA -600 ~ -3150V 0 ~ 400mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-4KP300-HPDP 200 ~ 4000V 0 ~ 300mA 200 ~ 4200V 0 ~ 300mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-4KN300-HPDP -800 ~ -4000V 0 ~ 300mA -800 ~ -4200V 0 ~ 300mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-5KP240-HPDP 300 ~ 5000V 0 ~ 240mA 300 ~ 5250V 0 ~ 240mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-5KN240-HPDP -1000 ~ -5000V 0 ~ 240mA -1000 ~ -5250V 0 ~ 240mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-6KP200-HPDP 400 ~ 6000V 0 ~ 200mA 400 ~ 6120V 0 ~ 200mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-6KN200-HPDP -1200 ~ -6000V 0 ~ 200mA -1200 ~ -6120V 0 ~ 200mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-8KP150-HPDP 500 ~ 8000V 0 ~ 150mA 500 ~ 8400V 0 ~ 150mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-8KN150-HPDP -1600 ~ -8000V 0 ~ 150mA -1600 ~ -8400V 0 ~ 150mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-10KP120-HPDP 800 ~ 10000V 0 ~ 120mA 800 ~ 10500V 0 ~ 120mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-10KN120-HPDP -2000 ~ -10000V 0 ~ 120mA -2000 ~ -10500V 0 ~ 120mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-12KP100-HPDP 1000 ~ 12000V 0 ~ 100mA 1000 ~ 12500V 0 ~ 100mA ≤0.1% FS 1V 0.01mA 1V 0.01mA
PIPL-12KN100-HPDP -2400 ~ -12000V 0 ~ 100mA -2400 ~ -12500V 0 ~ 100mA ≤0.1% FS 1V 0.01mA 1V 0.01mA
Model
(2400W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-1KP2400-HPDP 0~1000V 0~2400mA 0~1050V 0~2400mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1KN2400-HPDP -200~-1000V 0~2400mA -200~-1050V 0~2400mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-2KP2000-HPDP 0~2000V 0~2000mA 0~2100V 0~2000mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-2KN2000-HPDP -240~-1200V 0~2000mA -240~-1260V 0~2000mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1.5KP1600-HPDP 0~1500V 0~1600mA 0~1575V 0~1600mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-1.5KN1600-HPDP -300~-1500V 0~1600mA -300~-1575V 0~1600mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-2.8KP1200-HPDP 0~2800V 0~1200mA 0~2100V 0~1200mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-2.8KN1200-HPDP -400~-2000V 0~1200mA -400~-2100V 0~1200mA ≤0.1% FS 1V 1mA 1V 1mA
PIPL-3KP800-HPDP 200~3000V 0~800mA 200~3150V 0~800mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-3KN800-HPDP -600~-3000V 0~800mA -600~-3150V 0~800mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-4KP600-HPDP 200~4000V 0~600mA 200~4200V 0~600mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-4KN600-HPDP -800~-4000V 0~600mA -800~-4200V 0~600mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-5KP480-HPDP 300~5000V 0~480mA 300~5250V 0~480mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-5KN480-HPDP -1000~-5000V 0~480mA -1000~-5250V 0~480mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-6KP400-HPDP 400~6000V 0~400mA 400~6120V 0~400mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-6KN400-HPDP -1200~-6000V 0~400mA -1200~-6120V 0~400mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-8KP300-HPDP 500~8000V 0~300mA 500~8400V 0~300mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-8KN300-HPDP -1600~-8000V 0~300mA -1600~-8400V 0~300mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-10KP240-HPDP 800~10000V 0~240mA 800~10500V 0~240mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
PIPL-10KN240-HPDP -2000~-10000V 0~240mA -2000~-10500V 0~240mA ≤0.1% FS 1V 0.1mA 1V 0.1mA
Model
(4000W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-8005000-HPDP 0~800V 0~5000mA 0~840V ≤0.1% FS 0.1V 1mA 0.1V 0.1V 1mA
PIPL-1KP4000-HPDP 0~1000V 0~4000mA 0~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KP4000-HPDP ~200~1000V 0~4000mA ~200~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KP3300-HPDP 0~1200V 0~3300mA 0~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KN3300-HPDP ~240~1200V 0~3300mA ~240~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KP2600-HPDP 0~1500V 0~2600mA 0~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KN2600-HPDP ~300~1500V 0~2600mA ~300~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KP2000-HPDP 0~2000V 0~2000mA 0~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KN2000-HPDP ~400~2000V 0~2000mA ~400~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KP1300-HPDP 400~3000V 0~1300mA 400~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KN1300-HPDP 600~3000V 0~1300mA 600~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-4KP1000-HPDP 550~4000V 0~1000mA 550~4200V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-4KN1000-HPDP 800~4000V 0~800mA 800~4200V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-5KP800-HPDP 1000~5000V 0~800mA 1000~5250V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KP660-HPDP 800~6000V 0~660mA 800~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KN660-HPDP ~1200~6000V 0~660mA ~1200~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
Model
(5000W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-1KP5000-HPDP 0~1000V 0~5000mA 0~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1KN5000-HPDP ~200~1000V 0~5000mA ~200~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KP4160-HPDP 0~1200V 0~4160mA 0~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KN4160-HPDP ~240~1200V 0~4160mA ~240~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KP3300-HPDP 0~1500V 0~3300mA 0~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KN3300-HPDP ~300~1500V 0~3300mA ~300~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KP2500-HPDP 0~2000V 0~2500mA 0~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KN2500-HPDP ~400~2000V 0~2500mA ~400~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KP1600-HPDP 400~3000V 0~1600mA 400~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KN1600-HPDP 600~3000V 0~1600mA 600~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-4KP1250-HPDP 550~4000V 0~1250mA 550~4200V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-4KN1250-HPDP 800~4000V 0~1250mA 800~4200V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-5KP1000-HPDP 700~5000V 0~1000mA 700~5250V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-5KN1000-HPDP 1000~5000V 0~1000mA 1000~5250V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-6KP830-HPDP 800~6000V 0~830mA 800~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KN830-HPDP ~1200~6000V 0~830mA ~1200~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
Model
(3000W)		 Rated Output
Voltage		 Voltage
Ripple		 Programming
Resolution		 Display
Resolution
V A OVP V A OVP V A
PIPL-1KP3000-HPDP 0~1000V 0~3000mA 0~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1KN3000-HPDP ~200~1000V 0~3000mA ~200~1050V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KP2500-HPDP 0~1200V 0~2500mA 0~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.2KN2500-HPDP ~240~1200V 0~2500mA ~240~1260V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KP2000-HPDP 0~1500V 0~2000mA 0~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-1.5KN2000-HPDP ~300~1500V 0~2000mA ~300~1575V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KP1500-HPDP 0~2000V 0~1500mA 0~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-2KN1500-HPDP ~400~2000V 0~1500mA ~400~2100V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KP1000-HPDP 200~3000V 0~1000mA 200~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-3KN1000-HPDP 300~3000V 0~1000mA 300~3150V ≤0.1% FS 1V 1mA 1V 1V 1mA
PIPL-4KP750-HPDP 200~4000V 0~750mA 200~4200V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-4KN750-HPDP 800~4000V 0~750mA 800~4200V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-5KP600-HPDP 300~5000V 0~600mA 300~5250V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-5KN600-HPDP 1000~5000V 0~600mA 1000~5250V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KP500-HPDP 400~6000V 0~500mA 400~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-6KN500-HPDP ~1200~6000V 0~500mA ~1200~6120V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-8KP375-HPDP 500~8000V 0~375mA 500~8400V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-8KN375-HPDP 1600~8000V 0~375mA 1600~8400V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-10KP300-HPDP 800~10000V 0~300mA 800~10500V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
PIPL-10KN300-HPDP ~2000~10000V 0~300mA ~2000~10500V ≤0.1% FS 1V 0.1mA 1V 1V 0.1mA
